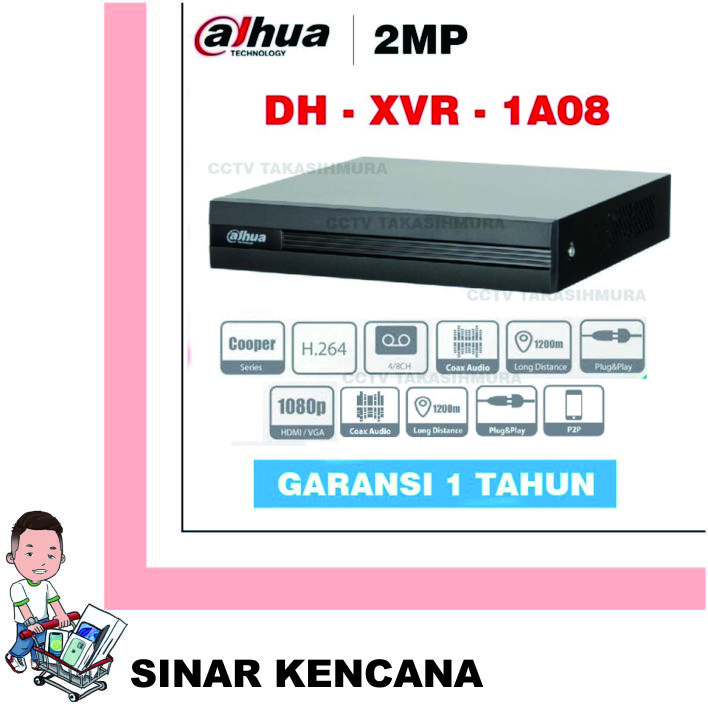

DVR 8 Channel 2MP XVR1A08 Dahua COOPERSeries

Dahua XVR1A08 Penta-brid
▪8 Channel Penta-brid 1080N/720P Cooper 1U Digital Video Recorder
▪H.264 video compression
▪Supports HDCVI/AHD/TVI/CVBS/IP video inputs
▪Max 10 channels IP camera inputs, each channel up to 2MP/5MP; Max 20/40Mbps Incoming Bandwidth
▪Long transmission distance over coax cable
▪Supports 1 SATA HDD, up to 6TB

System
▪Main Processor , Embedded Processor
▪Operating System, Embedded LINUX

▪Analog Camera Input 8 Channel, BNC
▪HDCVI Camera 1080P@25/30fps, 720P@25/30fps
▪AHD Camera 1080P@25/30, 720P@25/30fps
▪TVI Camera 1080P@25/30, 720P@25/30fps
▪CVBS Camera PAL/NTSC
▪IP Camera Input
8CH: 8+2, each channel up to 5MP

▪Video Compression H.264

▪Resolution 1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF

▪Video Bit Rate 32Kbps ~ 4096Kbps Per Channel

▪Interface 1 RJ-45 Port (100M)
