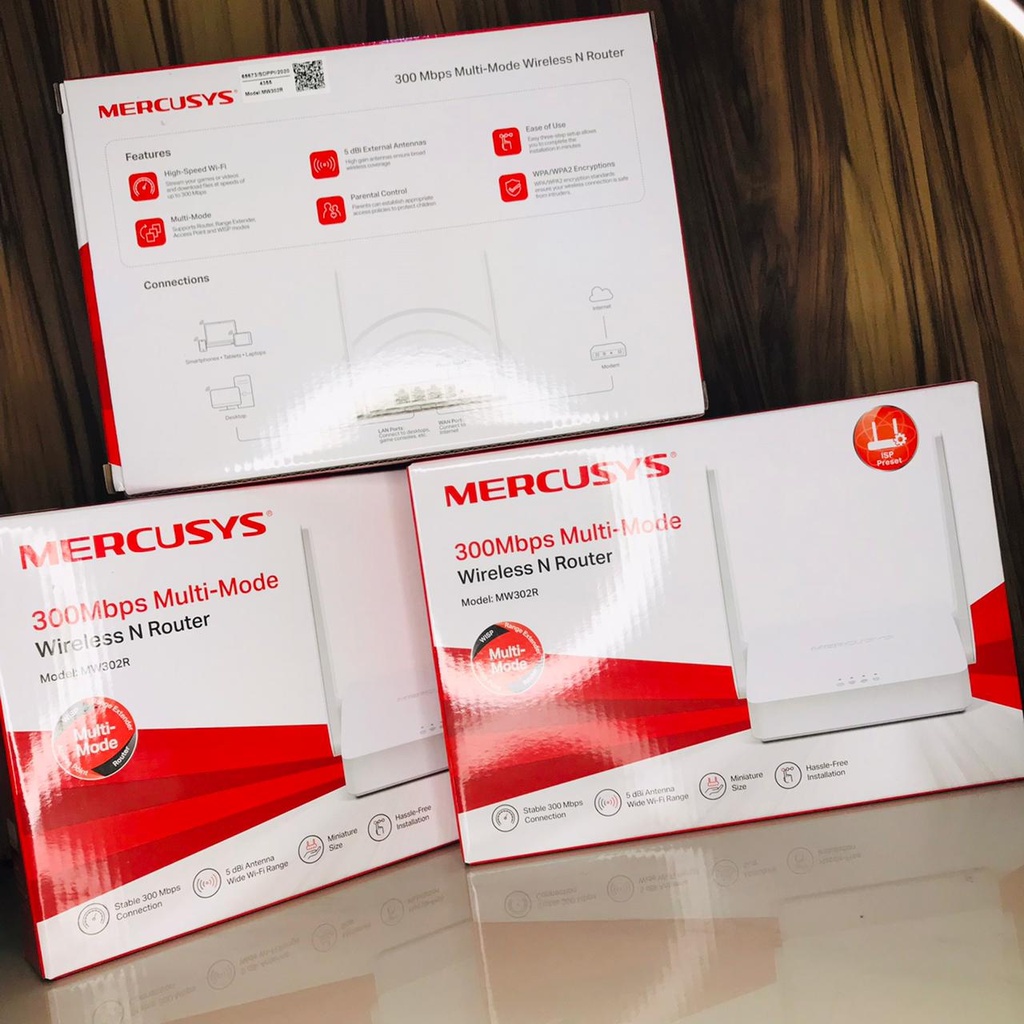

Router Mercusys MW302R (Antena 2)

Spesifikasi Produk:
Ethernet Ports
2*10/100Mbps LAN Ports &
1*10/100Mbps WAN Port

- Button
Reset Button
- External Power Supply
5V/0.6A
- Dimensions (W X D X H)
114 mm × 94 mm × 26 mm
- Antenna Type
2 * 5dBi
- Package Contents
300Mbps Wireless N Router ( MW302R )
Power Adapter
Quick Installation Guide
Ethernet Cable
- Wireless Standards
IEEE 802.11b/g/n
- Frequency
2.4-2.4835GHz
- Signal Rate
• 11n: Up to 300Mbps (Dynamic)
• 11g: Up to 54Mbps (Dynamic)
• 11b: Up to 11Mbps (Dynamic)

Reception Sensitivity
• 270M: -73dBm@10% PER
• 130M: -75dBm@10% PER
• 54M: -77dBm@10% PER
• 11M: -90dBm@10% PER
• 6 M: -94dBm@10% PER
• 1 M: -96dBm@10% PER

- Wireless Functions
Enable/Disable Wireless Radio, WDS Bridging
- Wireless Security
WPA-PSK / WPA2-PSK
- WAN Type
Dynamic IP/Static IP/PPPoE/PPTP/L2TP
- DHCP
Server
- Port Forwarding
Virtual Server, UPnP, DMZ
- Management
Access Control, Local Management, Remote Management
- Firewall Security
IP and MAC Address Binding
- Guest Network
2.4GHz Guest Network
- Protocols
IPv4, IPv6
- Environment
• Operating Temperature: 0°C~40°C (32°F~104°F)
• Storage Temperature: -40°C~70°C (-40°F~158°F)
• Operating Humidity: 10%~90% Non-Condensing
• Storage Humidity: 5%~90% Non-Condensing
